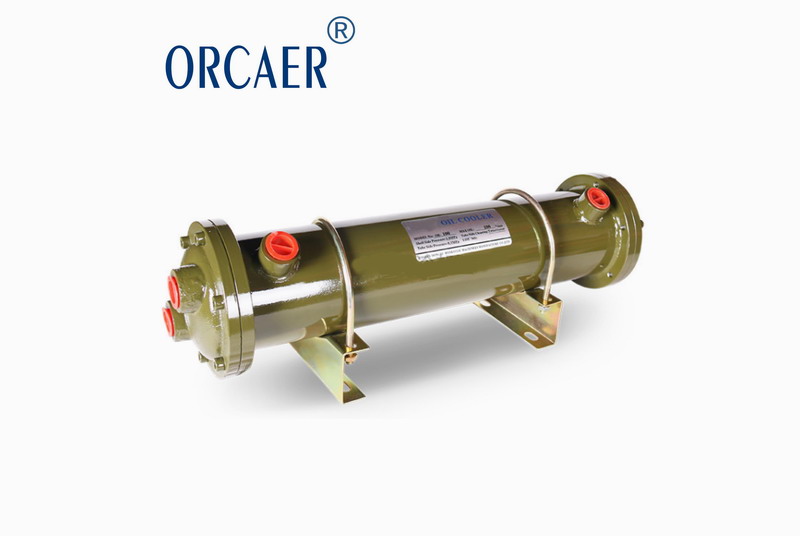

OR-1200L Oil Cooler,water cooled heat exchanger,shell and tube cooler,Or Series Oil Cooler,Or Type Oil cooler,
OR oil cooler:OR-60L, OR-100L, OR-150L,OR-250L.OR-350L,OR-600L,OR-800L,OR-1000L,
OR Oil cooler/heat exchanger Features:
1)Usually used for cooling.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The seamless titanium tube was tested by 2.0MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .
4)The cooler shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
OR Oil cooler Application:
Shell and tube heat exchanger are widely used for cooling and heating in certain fields of special industries, such as acid tank plating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, shipbuilding and marine environment etc.
| Model | A | B | C | D | E | F | G | Radiating pipe | Cooling area (m2) | Capacity of tank | Weight (kg) | Flow of pump (L/min) | Water flow (L/min) |
| OR-60 | 465 | 295 | 40 | 89.1 | 120 | ¾ | ¾ | 22 | 0.24 | 60 | 8 | 100 | 50 |
| OR-100 | 540 | 370 | 55 | 114.3 | 140 | ¾ | ¾ | 26 | 0.35 | 100 | 12 | 200 | 100 |
| OR-150 | 580 | 375 | 65 | 139.8 | 170 | 1¼ | ¾ | 42 | 0.6 | 150 | 15 | 300 | 150 |
| OR-250 | 800 | 600 | 65 | 139.8 | 170 | 1¼ | ¾ | 58 | 1.2 | 250 | 22 | 300 | 150 |
| OR-350 | 1205 | 1000 | 65 | 139.8 | 170 | 1¼ | ¾ | 58 | 1.9 | 350 | 30 | 300 | 150 |
| OR-600 | 1225 | 970 | 85 | 165.2 | 196 | 2 | 1½ | 58 | 1.9 | 600 | 40 | 400 | 200 |
| OR-800 | 1725 | 1470 | 85 | 165.2 | 196 | 2 | 1½ | 58 | 2.8 | 800 | 50 | 400 | 200 |
