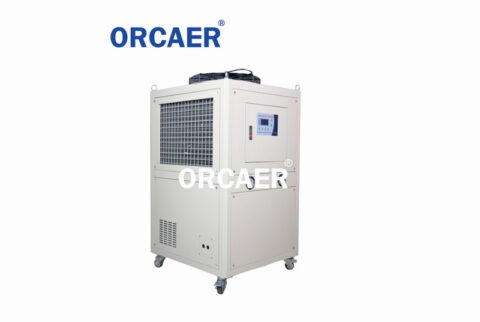

HYDAC OIL Chiller System(RFCS)
HYDAC OIL Chiller General
The RFCS cooling unit (chiller) is used to cool various liquids such as water,water glycol or oil down to the ambient
temperature or below. The chiller system consists of refrigerator, pump,tank and controller and is able to set
the temperature of the cooling mediato a previously configured target value independently.
HYDAC OIL Chiller Product Features
ll Fluid cooling system as separate auxiliary cooler or for integration into a machine Can be used for any cooling tasks
ll Stand-alone control of the system by means of innovative controller design
ll Condenser available as water-cooled or air-cooled variant
ll Multiple cooling circuits
ll Precise temperature control accuracies from ± 0.1 K
ll Optional outdoor installation
ll Think green – act green: energy efficient mixer principle available as an option
Centralized Cooling Systems
RFCS water-chiller with heat exchanger and HY-ECOBOX
RFCS water chiller:The RFCS is used to prepare cold water.Regardless of the particular ambient temperature, cold water can be provided
in a wide range of capacity classes and fed to the customer application. The unit is a water-cooled water chiller. The plate heat exchanger
condenser transfers its process heat to a separate cooling-water circuit.
Heat exchanger:
RFCS cooling units with water-cooled condenser require a cooled water supply for heat removal. A heat exchanger is
used when it is either not practical or not desirable to utilize mains water.
HYDAC OIL Chiller HY-ECOBOX:
The HY-ECOBOX is an optional module which contributes to improved energy saving: when the ambient temperature
drops below a certain level, the cooling machine’s active cooling is switched off.The system then operates in passive
cooling mode, using the heat exchanger.This energy manager can therefore only be used in combination with a heat
exchanger.
