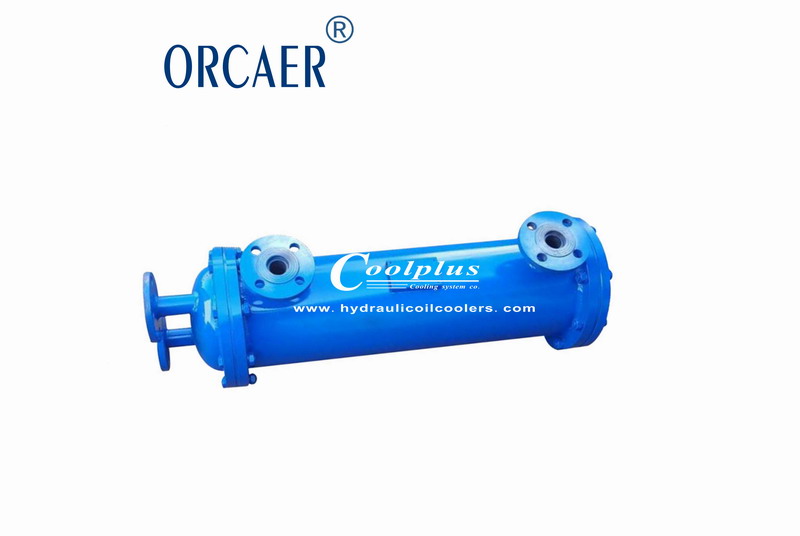

GLC-GLL OIL COOLER,GLC-GLL HEAT EXCHANGER,GLC-GLL SHELL AND TUBE COOLER
GLC GLL series pipeline oil cooler Product Description
GLC,GLL series OIL COLER is a new and high-efficiency cooler developed according to foreign information. It is suitable for hydraulic lubrication systems of metallurgical industry, mine industry, chemical industry, electric power industry, machine tool industry, light industry, plastic industry and so on and it can cool the working medium to specified temperature.

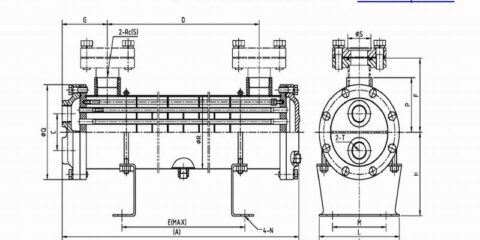

GLC,GLL series OIL COLER series cooler consists of shell, front cover, rear cover, cooling core and so on. Cooling core consists of heat exchange tube, fixed tube sheet, floated tube sheet, baffle, and strut bar. Heat exchange tube adopts red copper finned tube, one end fixed, another end floated, thus structure failures caused by thermal expansion are avoided effectively. Cooling tube can be drawn from the shell and is convenient for examination, cleaning and maintainance.
GLC OIL COOLER,GLL OIL COOLER holds merits of small in size, light weight, novel structure, remarkable heat exchange effect and so on. Its performance reaches the level of the same products abroad.
GLC、GLL series tubular oil cooler
Nominal Pressure:0.63MPa,1.0MPa
Oil side pressure loss:≤0.1MPa
Water side pressure loss:≤0.05MPa
Oil inlet temperature:50℃
Water inlet temperature:≤30℃
Oil temperature drop:≥8℃
GLC series:Oil and water flow ratio1:1, Heat transfer coefficient＞300Kcal/m2·h·℃; Applicable medium viscosity 10~100cSt(40℃)
GLL serice:Oil and water flow ratio1:1.5, Heat transfer coefficient＞200Kcal/m2·h·℃; Applicable medium viscosity 10~460cSt(40℃)
Water side of the channel:double hysterics type of the floating tube plate.
GLC series OIL COLER
GLC1-0.4,GLC1-0.6,GLC1-0.8,GLC1-1,GLC1-1.2,GLC2-1.3,GLC2-1.7,GLC2-2.1,GLC2-2.6,GLC2-3,GLC2-3.5,GLC3-4,GLC3-5,GLC3-6,GLC3-7,GLC3-8,GLC3-9,GLC3-10,GLC3-11,GLC4-13,GLC4-15,GLC4-17,
GLC4-19,GLC4-21,GLC4-23,GLC4-25,GLC4-27,GLC5-30,GLC5-34,GLC5-37,GLC5-41,GLC5-44,GLC5-47,GLC5-51,GLC5-54,GLC6-55,GLC6-60,GLC6-65,GLC6-70,GLC6-75,GLC6-80,GLC6-85,GLC6-90,
GLL series OIL COLER
GLL3-4,GLL3-5GLL3-6,GLL3-7,GLL3-12,GLL3-16,GLL3-20,GLL3-24,GLL3-28,GLL3-35,GLL3-40,GLL3-45,GLL3-50,GLL3-60,GLL3-80,GLL3-100,GLL3-120,
GLL5-35L,GLL5-40L,GLL5-45L,GLL5-50L,GLL5-60L,GLL5-80L,GLL5-100L,GLL5-120L,GLL5-160L,GLL5-200L,
