AF/AH /AW/AF Series Plate-Fin Heat Exchanger(OIL COOLER)
AH1012T OIL COOLER Characteristics:
AF/AH series of aluminium wind condenser is made from aluminium which is light weight and has high resistant against vibration and high efficiency in heat exchange .In terms of the structure, a fin is placed inside the heat pipe to bring the heat away by air. As a result, a profit can be earned from the low cost and high efficency of cooling effect can be obtained.Thus, it will be an effective heat exchanger in the market..As the plate – fin aluminum high-pressure air cooler has the following advantages, it is being widely used among the world, especially in Europe.
AH1012T OIL COOLER the parameter:
Cooler element,plate-fin heat exchanger,in high resistance aluminum alloy,carried out through a construction process,which used a special system of braze welding.
Test pressure : 30Bar.
Operating pressure : 20Bar.
Max operating temperature : 120℃
To preserve the heat exchanger, when installed on the return line of the system,a by pass valve should always be mounted in parallel to the exchanger in order to avoid excessive pressure surges.
An alternate piping method used a separate circuit from the reservoir with a small pump to drive the oil through the heat exchanger.

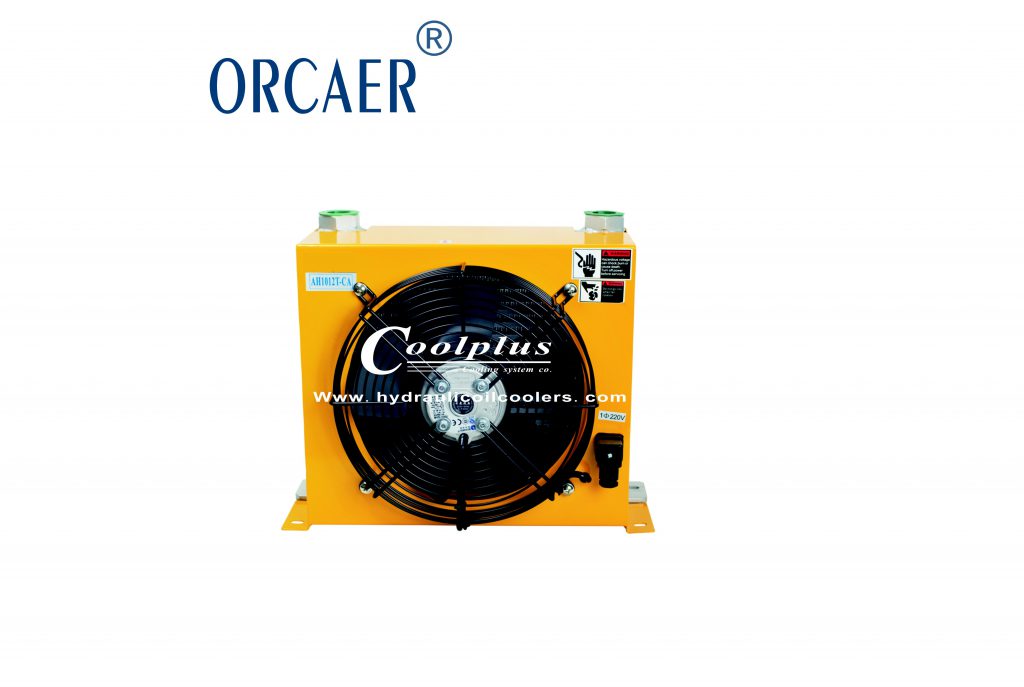

AH1012T-CA*/AH1012T-3P-CA*
Product model:AH1012T 1012T-3P
Brand:ORCAER/COOLPLUS
Nozzle diameter:1″(PT)
Nominal pressure:20 Bar
Outline size:417*360*200 mm
Weight:10 kg
AH1012T
Model | Flow range | Standard voltage | frequency | power | Electric current | speed | Air volume | Protection grade | noise | Authentication | Remarks |
L/min | V | Hz | W | A | R.P.M | m³/h | IP | dB(A) |
Temperature protection |
||
AH1012T-CA2 |
20-100 |
Single-phase 230 | 50/60 | 60/58 | 0.42/0.36 | 1300/1550 | 1500 | 54 | 55 | CE | |
AH1012T-CA1 | Single-phase 115 | 50/60 | 60/58 | 0.8/0.74 | 1300/1550 | 1500 | 54 | 55 | CE | ||
AH1012T-CD1 | CD 12 | 192 | 16 | 2000 | 1500 | 60 | CE | ||||
AH1012T-CD2 | CD 24 | 192 | 8 | 2400 | 1500 | 60 | CE | ||||
DC fan motor adopts carbon brush motor, which has service life limit, and the service life is about 2000 hours. |
AH1012T-3P
Model | Flow range | Standard voltage | frequency | power | Electric current | speed | Air volume | Protection grade | noise | Authentication | Remarks |
L/min | V | Hz | W | A | R.P.M | m³/h | IP | dB(A) |
Temperature protection |
||
AH1012T-3P-CA2 |
20-100 |
Three-phase230 | 50/60 | 80 | 0.45 | 2200 | 1500 | 54 | 60 | CE | |
AH1012T-3P-CA3 | Three-phase400 | 50/60 | 80 | 0.22 | 2600 | 1500 | 54 | 60 | CE |
